In industrial communication and automation system integration, the Honeywell MU-TSIM12 51303932-426 Modbus RTU serial interface module stands out as a core component for building stable data links, thanks to its flexible protocol adaptation capabilities and extensive device scalability. This article will analyze the module's technical parameters, application scenarios, and procurement value, explaining how it simplifies industrial communication architectures and reduces deployment costs.
Core Product Parameters and Features
Basic Specifications:

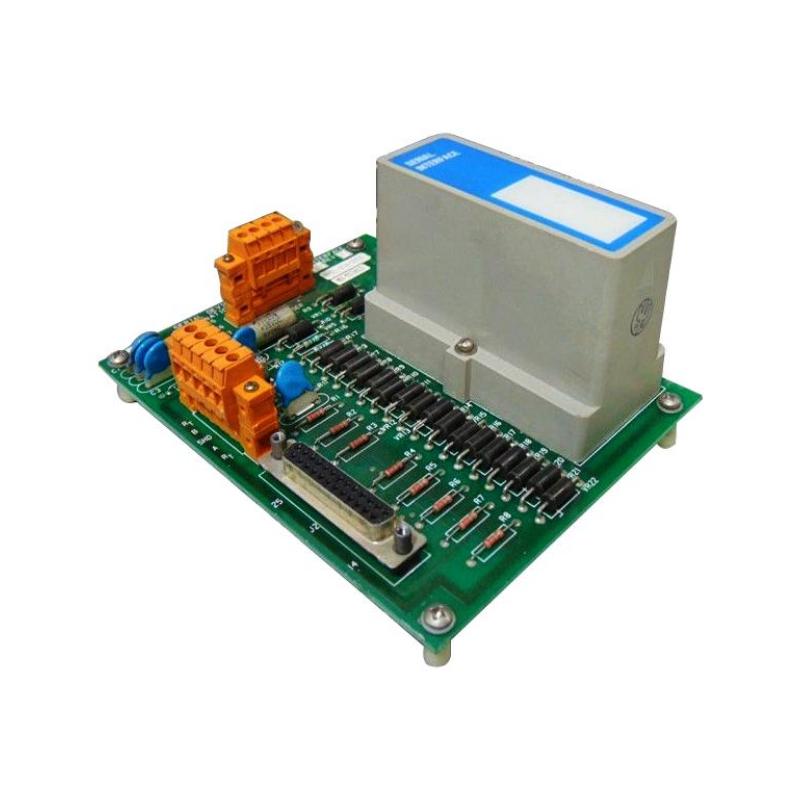

l Model: Honeywell MU-TSIM12 51303932-426
l Interface Types: EIA-232 (RS-232) single device / EIA-422/485 (RS-422/485) multi-device
l Communication Protocol: Modbus RTU (Slave mode)
l Channel Capacity: 1 master channel supporting up to 15 slave devices (EIA-422/485 mode)
l Power Consumption: 65mA (low power design)
l Terminal Type: C/DB-25 standard interface
l Compatibility: Must be used with MU-PSIM11 serial interface IOP and MU-TLPA02 power adapter.
Core Features
1. Dual-Mode Communication:
l EIA-232 Single Device Direct Connection: Suitable for local devices, HMI, and point-to-point communication scenarios.
l EIA-422/485 Multi-Device Networking: Supports cascading of up to 15 Modbus RTU slave devices, ideal for controlling PLCs, sensors, and variable frequency drives (VFDs).
2. Adaptive Performance Optimization:
l Dynamic adjustment of communication efficiency to match the number of devices, baud rate (1200-115200bps), and transaction frequency.
l Built-in FTA device driver firmware reduces the load on the master controller.
3. Industrial-Grade Reliability:
l Supports long-distance communication (EIA-485 transmission range up to 1200 meters) with electromagnetic interference (EMI) protection.
l Modular installation (Mounting Size A standard) suitable for DIN rail or panel mounting.
Product Categories
l Communication Interface Modules: Modbus RTU protocol converters, industrial serial FTA modules, RS-232/485 adapters.
l System Expansion Components: Compatible modules for Honeywell ControlEdge series, distributed I/O communication units.
l Industrial Protocol Hardware: Modbus slave interfaces, multi-device communication gateways.
Target Industries
l Oil & Gas: RTU device group control at well sites, remote instrument data collection.
l Water Treatment & Environmental Protection: Pump station PLC networking, centralized management of water quality sensors.
l Manufacturing: Synchronized control of multiple variable frequency drives (VFDs) on production lines, communication for AGV scheduling systems.
l Energy Management: Smart meter data aggregation, communication for photovoltaic inverter clusters.
Solutions
l Protocol Fragmentation: Standardizing Modbus RTU interfaces to unify communication across heterogeneous devices.
l Signal Attenuation Over Long Distances: Enhanced differential signal immunity with EIA-485, addressing long-distance communication.
l System Expansion Bottleneck: A single module supporting 15 slaves, reducing hardware stack costs.
Why Choose Honeywell MU-TSIM12?
Seamless Compatibility with ControlEdge Ecosystem: The module, when used with the MU-PSIM11 IOP and MU-TLPA02 power adapter, ensures complete communication integrity and system consistency.
Flexible Adaptation to Various Scenarios:
l EIA-232 Mode: For debugging ports or local device direct connection.
l EIA-485 Mode: For building cost-effective, reliable device networks.
Industrial-Grade Durability: Operating temperature range from -40°C to 85°C, EMC-certified for immunity to electromagnetic interference.
Take Action Now: Upgrade Your Industrial Communication Architecture
Whether for new projects or retrofitting existing systems, the Honeywell MU-TSIM12 51303932-426 Modbus RTU Serial Interface Module offers simplified deployment and exceptional cost-effectiveness for enabling device interconnectivity.
