Product Overview

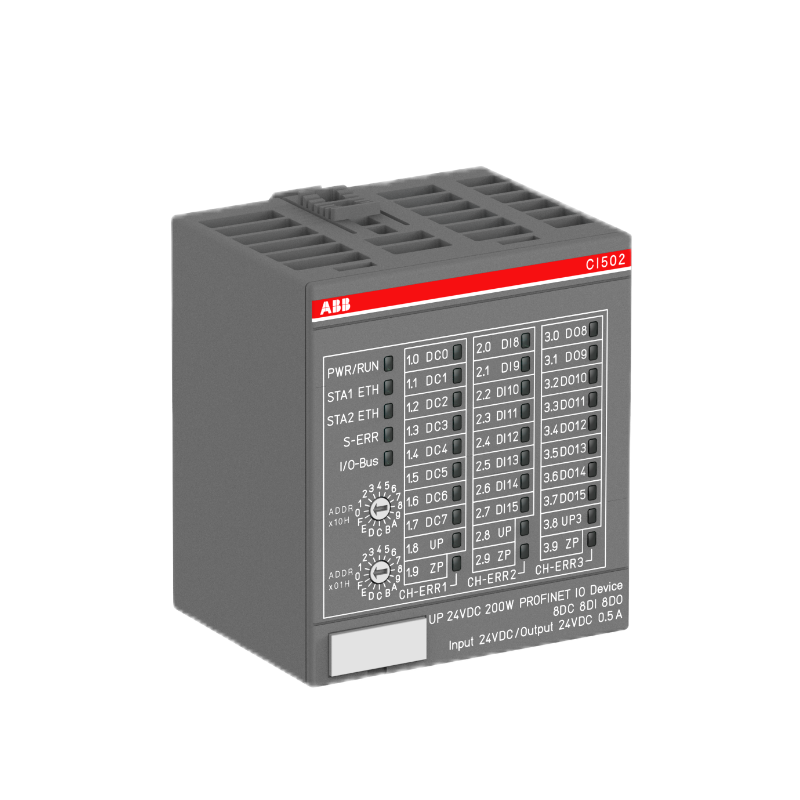

The ABB CI502 1SAP220700R0001 is a high-performance distributed I/O interface module based on PROFINET IO Real-Time (RT) communication, specifically designed for industrial automation systems. As a core component of the ABB S500 series, this module offers 8 digital inputs (24VDC), 8 digital outputs (24VDC 0.5A), and 8 configurable DI/DO channels. It supports flexible expansion up to a total of 10 I/O modules, making it suitable for precise control requirements in industries such as automotive manufacturing, logistics automation, water treatment, and food processing.
Core Functions and Product Details
1. Signal Processing and Communication Capabilities
· PROFINET IO RT Device: Supports real-time industrial Ethernet communication, ensuring high-speed data exchange and low-latency control (latency adjustable from 0.1 to 32 ms).
· I/O Configuration:
· Digital Input (DI): 8 channels, 24VDC, input current 5mA.
· Digital Output (DO): 8 channels, 24VDC, output current 0.5A (transistor output).
· Configurable DI/DO: 8 channels, 24VDC 0.5A, supports dynamic switching between input/output modes.
2. System Expansion and Compatibility
· Modular Design: Can be expanded to connect up to 10 I/O modules, adapting to complex control systems.
· Power Specification: Wide voltage input range of 20.4~28.8VDC, suitable for unstable industrial power grid environments.
3. Mechanical and Environmental Adaptability
· Compact Size: 67.5mm (width) × 76mm (height) × 62mm (depth), with a net weight of only 0.133kg, ideal for high-density cabinet installations.
· Protection Level: IP20 (compliant with IEC 60529), suitable for industrial scenarios without dust or liquid splash.
4. Certification and Standards
· Industrial Certification: Supports harsh environment applications, compliant with PROFINET, industrial Ethernet, and distributed automation standards.
· EMC Compatibility: Meets industrial electromagnetic compatibility requirements, ensuring stable operation.
Industry Demands and Solutions
1. Automotive Manufacturing
· Assembly line robot control through 8 configurable DI/DO channels for flexible logic switching.
· PROFINET real-time communication ensures synchronization accuracy for welding/painting equipment.
2. Logistics Automation
· High-speed signal acquisition for sorting systems (8DI+8DO), supporting 0.5A drive capability for controlling solenoid valves/indicators.
3. Water Treatment
· Pump station valve status monitoring (DI) and start/stop control (DO), with IP20 protection suitable for indoor power distribution environments.
4. Food and Beverage
· Automation of CIP cleaning processes, with configurable channels dynamically switching between sensor and actuator control modes.
Why Choose ABB CI502 S500 Interface module ?
✅ Flexibility and Scalability:
· 8+8+8 channel mixed I/O configuration supports dynamic reconfiguration, reducing hardware redundancy.
· Modular expansion capability lowers system upgrade costs.
✅ Industrial-Grade Reliability:
· Wide temperature power input (20.4~28.8VDC) adapts to voltage fluctuations.
· Transistor output with short-circuit protection design extends equipment lifespan.
✅ Seamless Integration:
· Compatible with ABB S500 series and third-party PROFINET controllers, shortening engineering commissioning cycles.
